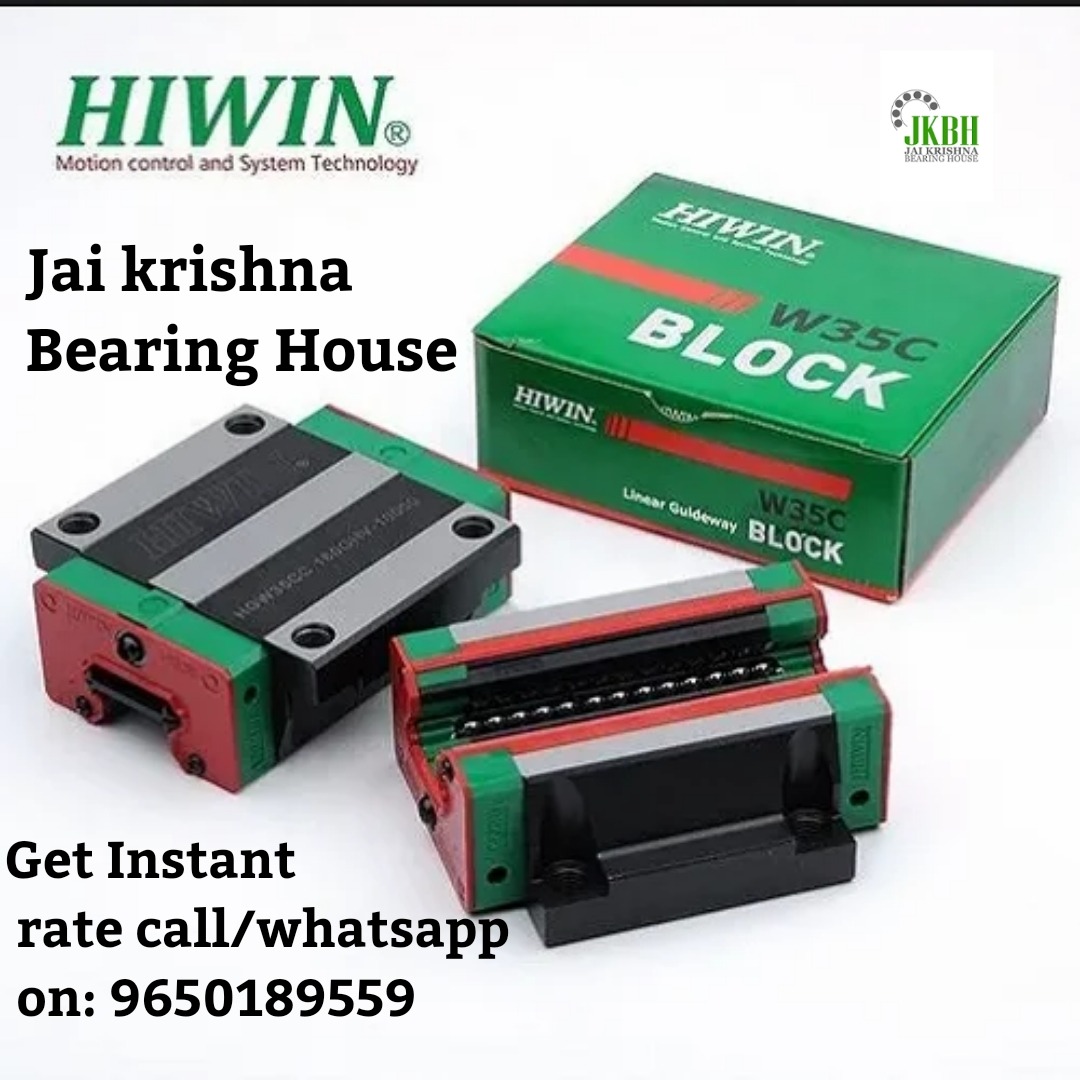

A HIWIN Technologies block, also known as a linear guide block or carriage, is a precision mechanical component used in linear motion systems to provide smooth, accurate, and low-friction movement along a guide rail. It works together with a matching linear rail and contains recirculating steel balls or rollers inside the block body. As the block moves along the rail, the balls continuously circulate through internal channels, reducing friction and allowing highly precise linear motion. HIWIN blocks are widely used in CNC machines, 3D printers, robotics, automation equipment, laser-cutting machines, and semiconductor machinery because of their high rigidity, excellent load capacity, and long service life. The block is designed to support loads in multiple directions, including radial, reverse radial, and lateral loads, while maintaining stable and vibration-free movement. Common parts of a HIWIN block include the main body, end caps, seals, recirculation channels, ball bearings, and lubrication ports. Different series such as HGH, HGW, MGN, and RG are available for various applications ranging from miniature precision systems to heavy industrial machinery. Proper lubrication and alignment are essential for maintaining smooth operation and preventing wear. Genuine HIWIN blocks are known for their high manufacturing precision, durability, and consistent performance in industrial motion control systems.
HIWIN Technologies manufactures many types of linear guide blocks and rails for different industrial applications. The main HIWIN block model series are the following:
HG Series – Heavy load standard type
EG Series – Low-profile compact type
MG Series – Miniature precision type
RG Series – Roller-type heavy rigidity guides
WE Series – Wide rail type for high moment load
CG Series – High moment load capacity type
QH Series – Quiet and smooth HG type with SynchMotion™
QE Series – Quiet version of EG series
QW Series – Quiet version of WE series
QR Series – Quiet roller-type version of RG series
PG Series – Positioning guideway with magnetic encoder
CRG Series – Heavy-duty roller guide series
UR Series – Ultra-high rigidity series
