A HIWIN LM Guide (Linear Guideway) is a precision mechanical component used to achieve smooth, accurate linear motion in machines.
It uses rolling elements (balls or rollers) between a rail and a moving block.
Friction is extremely low—about 1/50th of traditional sliding guides
Widely used in:
CNC machines
Robotics
Automation systems
Semiconductor equipment
⚙️ 2. Main Components of HIWIN LM Guide
1. Guide Rail
Fixed linear track (hardened steel)
Provides direction and support
2. Linear Block (Carriage)
Moves along the rail
Mounted to the machine part
3. Rolling Elements
Balls (most common) or rollers
Circulate inside the block to reduce friction
4. Recirculation System
Allows continuous motion (infinite stroke)
📌 Structure summary:
Rail + Block + Balls/Rollers = LM Guide System
⚙️ 3. Working Principle
The block contains circulating balls/rollers
When the block moves:
Balls roll forward → recirculate inside → return to start
This creates:
Low friction
Smooth motion
No stick-slip effect
⭐ 4. Key Features & Advantages
✅ High Precision
Minimal deviation
Maintains accuracy over long time
✅ Low Friction
Requires less driving force
High efficiency
✅ High Load Capacity
Can carry loads in all directions (vertical, horizontal, lateral)
✅ Long Service Life
Low wear due to rolling contact
✅ High Speed Capability
Suitable for automation & CNC
✅ Easy Installation & Replacement
No scraping required like traditional slides
Best HIWIN Dealers Near You (Delhi)

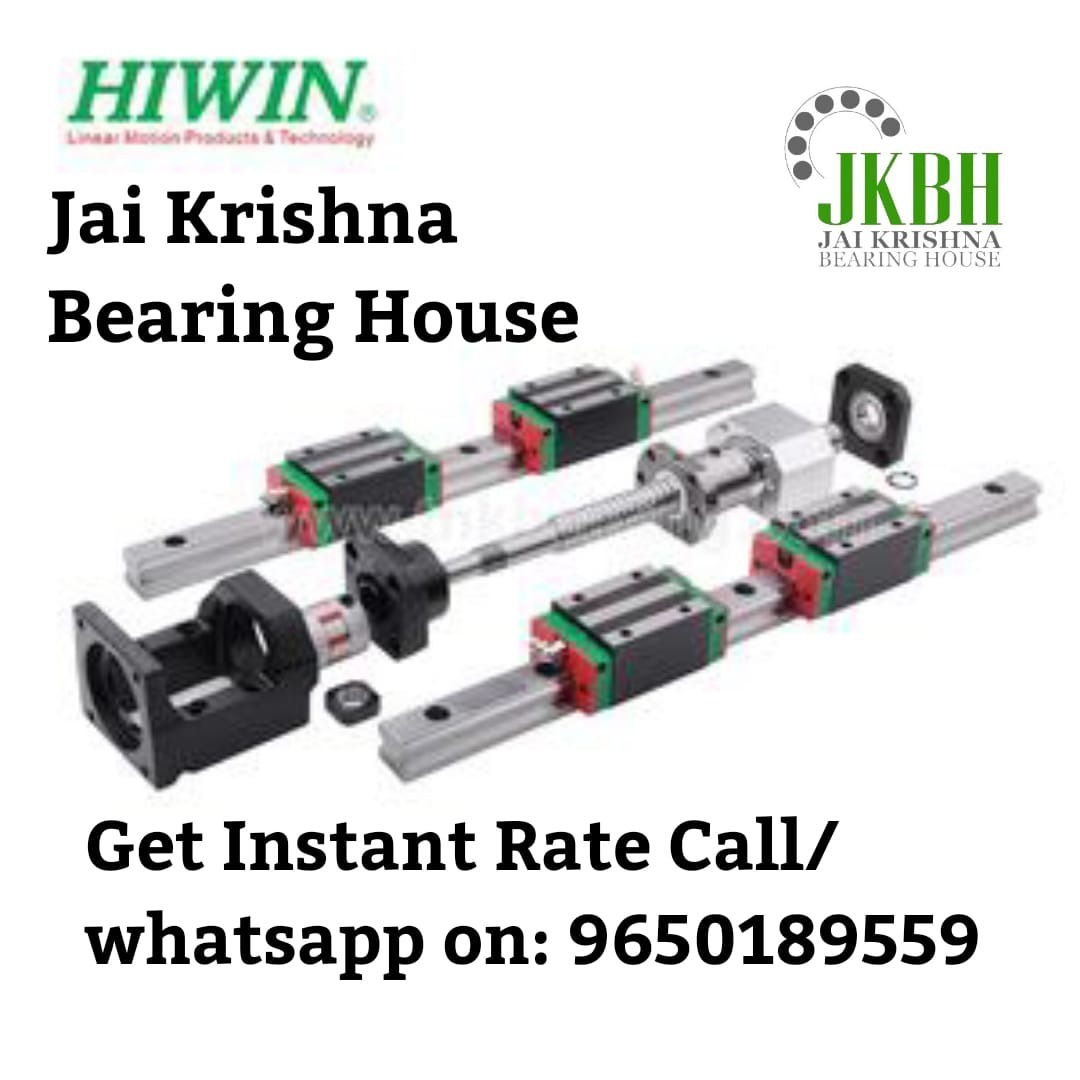

🔧 Jai Krishna Bearing House
4.9
•
Bearing supplier
•
Open
One of the most reliable HIWIN dealers in Delhi
Specializes in linear guides, bearings, automation parts
Located in Chandni Chowk industrial market
