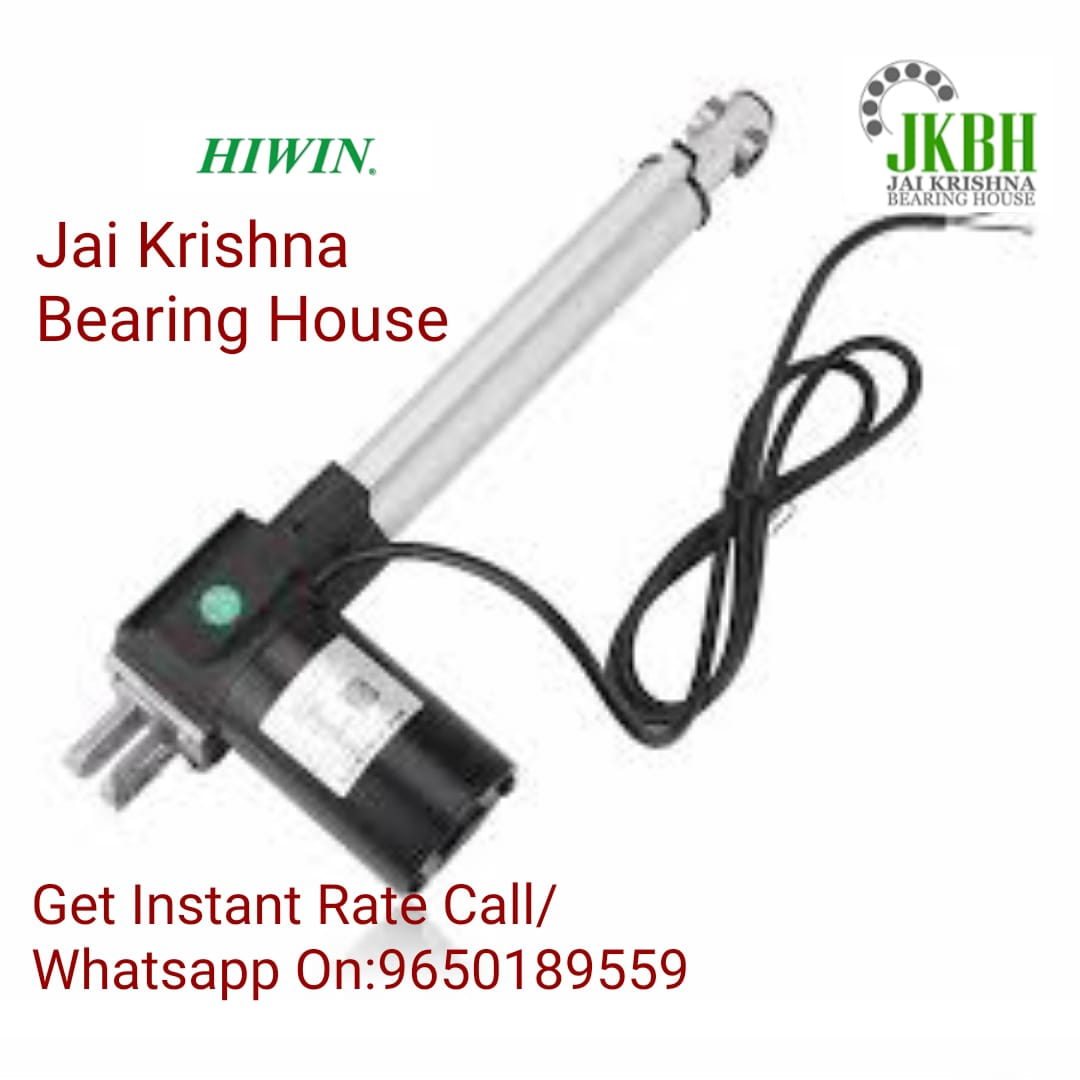

A linear actuator is a device that creates motion in a straight line, as opposed to the circular motion of a typical electric motor. Hiwin linear actuators convert rotary motion into linear displacement using a combination of motors, ball screws, or belt drives. 🏭 Hiwin Linear Actuator Series Overview 1. KK Series – Single Axis Robot Structure: Integrates a precision ball screw and linear guideway in a single compact module. Features: High positioning accuracy High rigidity Compact design Easy installation Applications: Semiconductor equipment, pick-and-place machines, 3D printers, and CNC machines. 2. LC Series – Linear Actuator Structure: Built-in motor with high-torque output. Features: Quiet operation Compact motor integration High dynamic performance Applications: Medical beds, adjustable desks, and ergonomic furniture. 3. LT Series – Telescopic Actuators Structure: Telescopic tubes with internal motors. Features: Space-saving design Long stroke, compact retracted length Applications: Medical equipment, automation requiring long strokes in tight spaces. 4. HT/HS Series – Industrial Electric Actuators Structure: Heavy-duty actuators with either AC or DC motors. Features: High force output Long service life IP-rated protection (for water/dust resistance) Applications: Industrial machinery, solar trackers, and agricultural equipment. ⚙️ Key Components Motor: Typically AC, DC, or stepper/servo motors depending on model. Drive Mechanism: Commonly uses ball screws, lead screws, or belt drives. Guide System: Uses linear guideways (often Hiwin’s own HG or EG series). Housing: Aluminum alloy or stainless steel depending on the use case. 📈 Performance Specs Stroke Lengths: From a few millimeters to over a meter Load Capacities: Ranging from a few kilograms to several tons Speed Range: Adjustable based on motor/drive selection Precision: Up to micrometer-level positioning with ball screw systems 🧰 Customization & Accessories Limit switches Position feedback (encoder options) Braking systems Mounting kits Compatible with Hiwin’s motion control systems (such as D1, D2 drives) 🔌 Integration Hiwin actuators can be controlled using: Hiwin motion controllers PLC systems Custom embedded systems They support protocols like Modbus, CANopen, and EtherCAT depending on the model.
