Precision That Moves Industry Forward – HIWIN Linear Guide
Supplied by Jai Krishna Bearing House – Top Distributor of HIWIN
In today’s modern industry, precision is not a luxury — it is a necessity. Every CNC machine, every automation system, every packaging line depends on smooth and accurate linear movement. Even a small vibration or misalignment can cause rejection, downtime, and financial loss.
Behind every smooth and powerful machine movement, there is a strong linear motion system. And when it comes to trusted linear motion technology, industries worldwide rely on HIWIN Technologies Corp. Linear Guides.
Jai Krishna Bearing House is proud to be a top distributor of HIWIN Linear Guides, supplying genuine products with strong technical support to customers across industries. We do not just supply products — we provide complete motion solutions with our experienced technical support team.
What is a HIWIN Linear Guide?

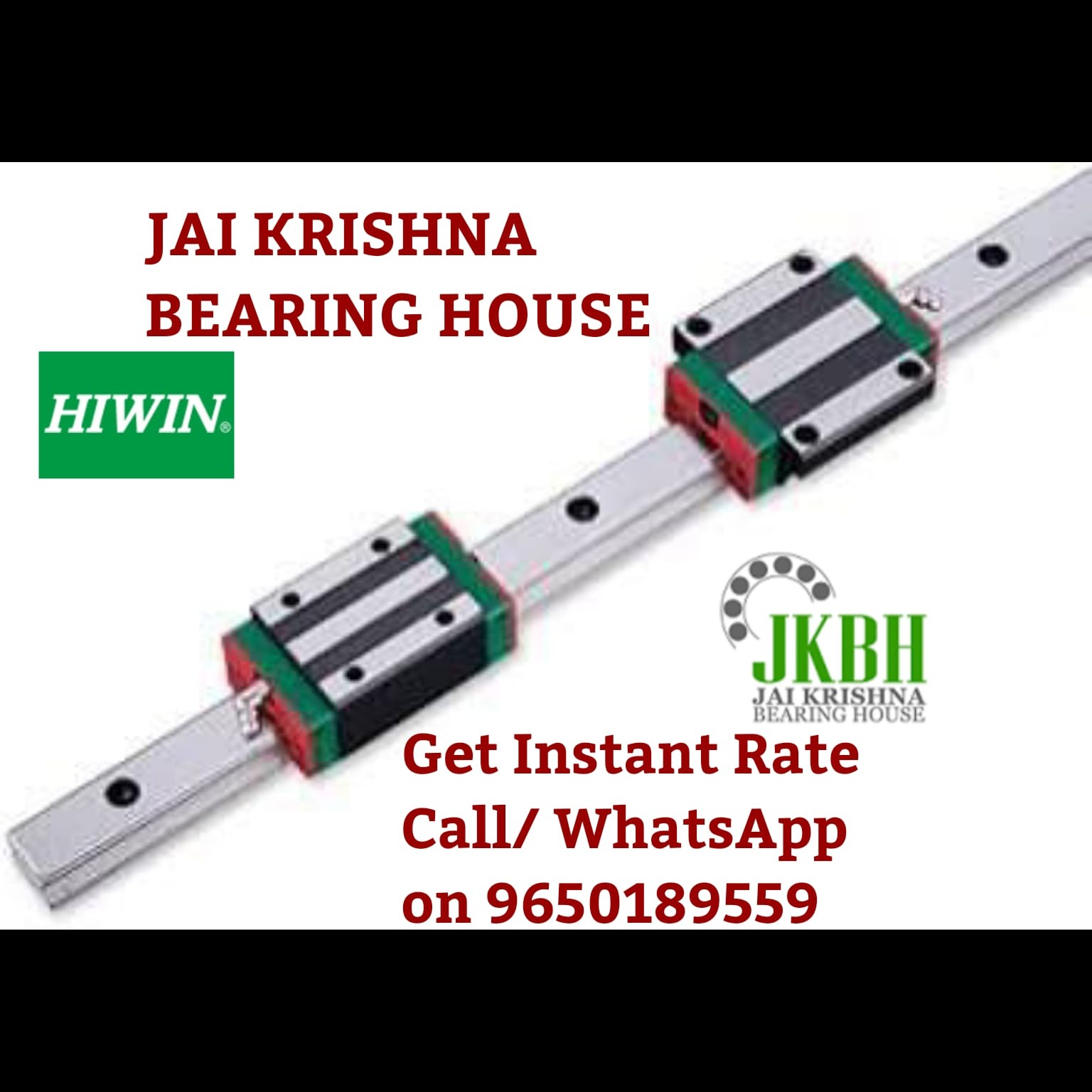

A HIWIN Linear Guide (also known as LM Guide) is a precision mechanical component that allows smooth and accurate linear movement with very low friction.
It mainly consists of:
Linear Rail (Guide Rail)
Guide Block (Carriage)
Rolling Elements (Balls or Rollers)
End Caps with Ball Circulation System
Unlike traditional sliding systems, HIWIN Linear Guides use rolling contact. This reduces friction and increases efficiency, accuracy, and life.
Working Principle of HIWIN Linear Guide
Inside the guide block, steel balls (or rollers) circulate continuously in a closed loop. When the block moves along the rail:
Balls roll between rail and block
Friction remains very low
Heat generation is minimal
Motion becomes smooth and stable
Because of rolling contact instead of sliding contact:
✔ Energy consumption reduces
✔ Wear and tear reduces
✔ Machine life increases
✔ Accuracy improves
Technical Design Features
1. Four-Row Circular Arc Contact Design
HIWIN Linear Guides use a four-row ball contact design. This provides:
Equal load capacity in all four directions
High rigidity
Stable motion under heavy load
Load can be taken in:
Radial direction
Reverse radial direction
Lateral direction
This makes it suitable for heavy-duty CNC and industrial applications.
2. High Load Capacity
Due to optimized raceway design and high-quality alloy steel:
Dynamic load capacity is high
Static load capacity is strong
Suitable for high-speed & heavy-load machines
Roller type models provide even higher load capacity than ball type.
3. High Accuracy Classes
HIWIN provides different precision grades:
N (Normal)
H (High)
P (Precision)
SP (Super Precision)
UP (Ultra Precision)
For CNC machines and semiconductor equipment, precision grades ensure micron-level positioning accuracy.
4. Preload Options
Preload removes internal clearance between balls and raceways.
Available preload types:
Light preload
Medium preload
Heavy preload
Benefits of proper preload:
✔ Higher rigidity
✔ Better vibration control
✔ Improved positioning accuracy
Our technical team at Jai Krishna Bearing House helps customers select proper preload according to machine requirement.
Types of HIWIN Linear Guides
HG Series – Heavy Load Type
Most popular and widely used series.
Features:
High rigidity
Four-row ball design
Equal load capacity
Suitable for CNC machines
Applications:
Machining centers
Injection molding machines
Grinding machines
EG Series – Low Profile Type
Compact design
Lower height
Space-saving solution
Used in:
Automation systems
Packaging machinery
RG Series – Roller Type Linear Guide
Instead of balls, it uses rollers.
Advantages:
Higher load capacity
Higher rigidity
Better for heavy machinery
Used in:
Large CNC machines
Heavy gantry systems
MG Series – Miniature Linear Guide
Small size, high precision.
Applications:
Medical equipment
Electronics assembly
Small automation machines
Important Technical Selection Factors
When selecting HIWIN Linear Guide, following factors must be considered:
1. Load Calculation
Total load includes:
Moving part weight
Cutting force
Acceleration force
Correct calculation increases service life.
2. Life Calculation
Basic life formula depends on:
Dynamic load rating
Applied load
Working conditions
Our technical support team helps in proper life calculation.
3. Speed Requirement
For high-speed machines:
Proper lubrication required
Correct model selection important
4. Mounting Accuracy
Rail mounting surface must be:
Flat
Parallel
Clean
Improper installation reduces performance.
Advantages of HIWIN Linear Guides
✔ Low friction coefficient
✔ High positioning accuracy
✔ High rigidity
✔ Long operational life
✔ Low noise operation
✔ Easy maintenance
✔ Interchangeable blocks and rails
These advantages reduce machine downtime and maintenance cost.
Applications in Various Industries
HIWIN Linear Guides are used in:
CNC Machine Tools
Automation & Robotics
Ensures repeatable and
