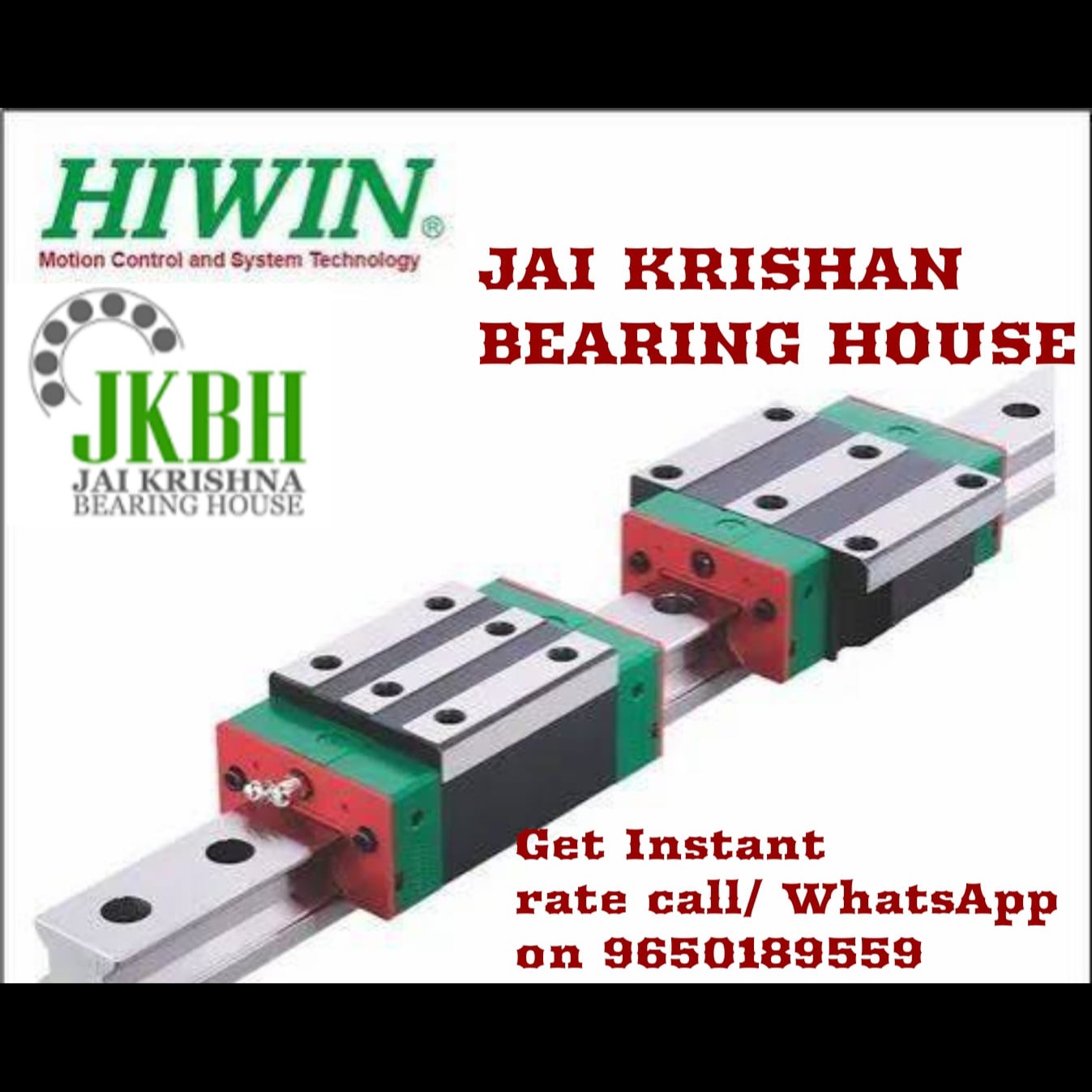

HIWIN Linear Rails & Guideways
By Jai Krishna Bearing House – Authorized Distributor of HIWIN
In modern industrial automation and precision engineering, linear motion systems play a critical role in ensuring accuracy, speed, and efficiency. Among the leading solutions in this domain, HIWIN Linear Rails and Guideways are globally recognized for their high precision, durability, and load-bearing performance.
At Jai Krishna Bearing House, we are proud to be an authorized distributor of HIWIN, offering genuine products along with complete technical support, selection guidance, and after-sales service for industrial and automation applications.
What is a Linear Rail & Guideway?
A linear guideway system consists of:
Profile rail (Linear Rail)
Carriage/Block (Linear Guide Block)
Rolling elements (balls or rollers)
These components enable smooth linear motion with minimal friction, achieved through recirculating rolling elements between the rail and block. Compared to traditional sliding systems, linear guideways reduce friction to nearly 1/50th, resulting in higher efficiency and precision.
Key Features of HIWIN Linear Guideways
1. High Precision Motion
HIWIN linear guides ensure micron-level accuracy due to:
Precision-ground raceways
Controlled ball circulation
Tight dimensional tolerances
2. Low Friction & Smooth Operation
The rolling contact design significantly reduces friction, allowing:
Smooth movement
Reduced wear
Energy efficiency
3. High Load Carrying Capacity
HIWIN guideways are designed to handle loads in all four directions:
Radial
Reverse radial
Lateral
Moment loads
This is achieved through a four-row circular arc contact design at 45°, ensuring uniform load distribution.
4. Self-Aligning Capability
The guideways automatically compensate for installation errors, improving:
Assembly flexibility
Operational accuracy
Service life
5. High Rigidity
With optimized structure and contact geometry, HIWIN rails offer:
High stiffness
Minimal deformation under load
6. Long Service Life
Due to:
Efficient lubrication system
Hardened steel raceways
Optimized load distribution
Technical Specifications (Typical – HIWIN HG Series)
The HG Series is one of the most widely used heavy-load linear guideways.
Load Capacity
Dynamic Load: 11.38 kN to 208.36 kN
Static Load: Up to 420 kN
Contact Angle
45° contact angle for equal load distribution
Rigidity
Radial rigidity up to ~1599 N/µm
Accuracy Grades
Normal (C)
High (H)
Precision (P)
Super Precision (SP)
Ultra Precision (UP)
Preload Options
Light preload
Medium preload
Heavy preload
Block Types
Square type (HGH series)
Flange type (HGW series)
HIWIN Linear Guide Series Overview
1. HG Series (Heavy Load Type)
High rigidity and load capacity
Suitable for heavy-duty machines
Equal load in all directions
2. EG Series (Low Profile Type)
Compact design
Ideal for space-saving applications
Used in high-speed automation
3. QH Series (High-Speed & Low Noise)
Equipped with SynchMotion™ technology
Smooth, quiet, and long life
Suitable for high-tech industries
4. QE Series
Low noise and improved lubrication
Ideal for precision automation
5. CG / QR Series
High moment load capacity
Suitable for heavy industrial applications
Industrial & Automation Applications
HIWIN linear rails are widely used across multiple industries:
CNC & Machine Tools
CNC machining centers
Milling machines
Grinding machines
EDM machines
Automation & Robotics
Pick-and-place systems
Robotic arms
Assembly automation
Packaging Industry
Conveyor automation
Filling & sealing machines
Semiconductor & Electronics
Precision inspection systems
PCB manufacturing
Injection Molding Machines
Mold positioning systems
High-speed clamping units
Material Handling Systems
Gantry systems
Automated storage systems
These applications demand high precision, repeatability, and durability, which HIWIN guideways deliver efficiently.
Advantages in Industrial Automation
1. Improved Productivity
Faster cycle times
High-speed linear motion
2. Enhanced Accuracy
Repeatability in microns
Ideal for precision manufacturing
3. Reduced Maintenance
Long lubrication intervals
Wear-resistant components
4. Energy Efficiency
Low friction reduces power consumption
5. Noise Reduction
Advanced ball circulation system ensures quiet operation
Design & Engineering Considerations
When selecting a HIWIN linear guide, engineers must consider:
Load Calculation
Static load (C₀)
Dynamic load (C)
Moment load (MR, MP, MY)
Life Calculation
Guide life depends on:
Load applied
Speed
Lubrication
Environment
Mounting Accuracy
Flat mounting surface required
Proper alignment ensures longer life
Preload Selection
Light preload → smooth motion
Heavy preload → high rigidity
Maintenance & Lubrication
To ensure optimal performance:
Use proper grease or oil lubrication
Maintain regular lubrication intervals
Protect from dust and contaminants
Use seals and wipers
HIWIN’s advanced lubrication system ensures:
Reduced wear
Longer service intervals
Stabl
