In advanced industrial automation, precision machinery, and high-speed motion systems, linear guides are the backbone of reliable, smooth, and accurate motion. At Jai Krishna Bearing House, as an authorized distributor of Hiwin (HIWIN Corporation), we provide genuine Hiwin linear guides engineered to deliver exceptional performance across a wide range of applications.
This technical article dives deep into Hiwin linear guide technology, design principles, product families, performance characteristics, selection criteria, and application insights — giving you a complete understanding of why Hiwin linear guides are the global benchmark for linear motion control.
1. What Are Linear Guides?
A linear guide (also called linear slide, linear rail, or linear motion guide) is a mechanical motion component designed to facilitate controlled, low-friction linear movement between machine elements.
Unlike conventional slide mechanisms that use sliding friction, linear guides use rolling elements (balls, rollers) between a rail and a carriage (block), resulting in:
Extremely low friction
High rigidity and accuracy
Long service life
Consistent motion under load
These characteristics make linear guides essential in applications where precision, speed, and durability are critical — including CNC machines, robotics, semiconductor equipment, medical devices, automated assembly, and inspection systems.
2. Hiwin: A Global Leader in Linear Motion
Hiwin, headquartered in Taiwan, is one of the world’s foremost manufacturers of precision motion products. With decades of experience and global presence, Hiwin linear guides are engineered to meet the highest industrial standards.
Key strengths of Hiwin:
Worldwide R& D investment in motion control
Precision manufacturing with micron-level tolerances
Broad product range for diverse industries
Consistent quality with international certifications
Global support network and extensive stock availability
As authorized Hiwin distributors, Jai Krishna Bearing House ensures that customers receive genuine products, certified performance data, and technical support at all stages — from selection to after-sales service.

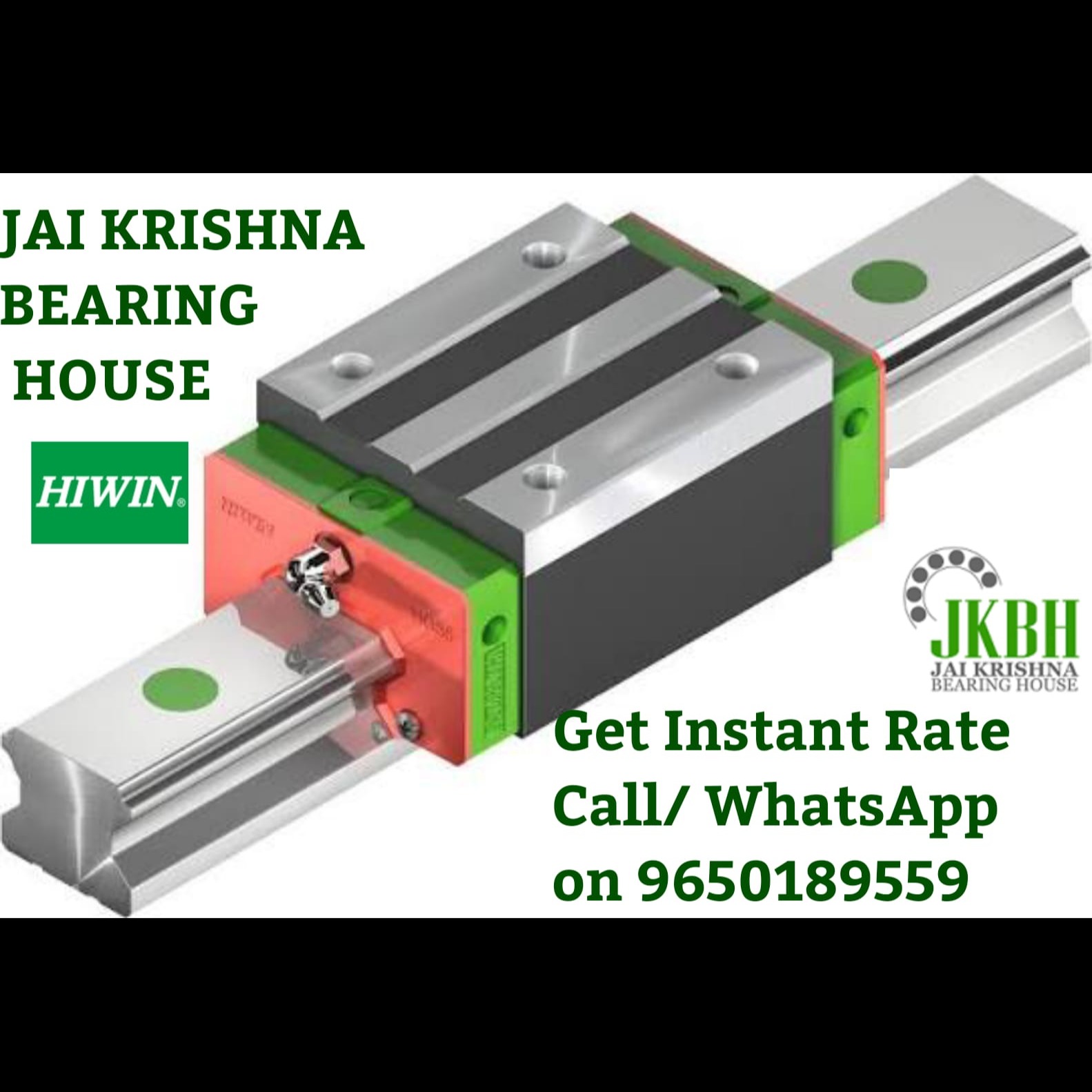

3. Technical Anatomy of Hiwin Linear Guides
A typical Hiwin linear guide system consists of three primary components:
3.1. Guide Rail
Manufactured from high-strength alloy steel
Hardened and precision-ground surfaces
Accurate geometric profile with strict straightness and flatness tolerances
Provides a trackway for the rolling elements
3.2. Slider (Carriage / Block)
Houses the recirculating rolling elements
Provides load support and motion guidance
Designed for rigidity, durability, and smooth travel
3.3. Rolling Elements
Depending on the series, the rolling elements can be:
Recirculating balls
Cylindrical rollers
These elements roll between the rail and carriage to significantly reduce friction, improve responsiveness, and provide high load capacity.
4. How Hiwin Linear Guides Work
Hiwin linear guides utilize a recirculating rolling element mechanism:
Rolling elements run in precise raceways formed on the rail and carriage.
As the carriage moves, balls or rollers continually circulate through return paths.
The design ensures constant contact and load distribution over the rolling elements.
This results in ultra-smooth motion, low starting torque, and excellent tracking accuracy.
The contact design also gives four-way load carrying capacity:
Radial loads
Reverse (axial) loads
Overturning moments
Large moments in multi-axis applications
This makes linear guides far superior to conventional sliding guides.
5. Hiwin Linear Guide Series & Technology
Hiwin offers a comprehensive series of linear guides, each engineered for specific requirements of rigidity, precision, speed, and life expectancy.
5.1. HG Series — Ball Type Linear Guides
The HG Series is the most widely used linear guide family — featuring:
Interchangeable carriage blocks
High rigidity and precision
Wide range of sizes
Excellent motion smoothness
Key Applications: CNC machines, industrial robots, machining centers, semiconductor handling, inspection, and assembly stations.
5.2. RG Series — Roller Type Linear Guides
The RG Series uses cylindrical rollers instead of balls, offering:
Higher load capacity
Greater rigidity
Better resistance to deformation
These are ideal for applications with heavy loads, high dynamics, or where deflection must be minimized.
Key Applications: Heavy-duty machining, large routers, heavy pick-and-place machines, molding machines, and presses.
5.3. EG Series — Economy Linear Guides
The EG Series offers cost-effective linear guidance with:
Reliable performance
Moderate load capacity
Stable motion
Ideal for general industrial applications where extreme precision isn’t essential.
Key Applications: Packaging machiner
