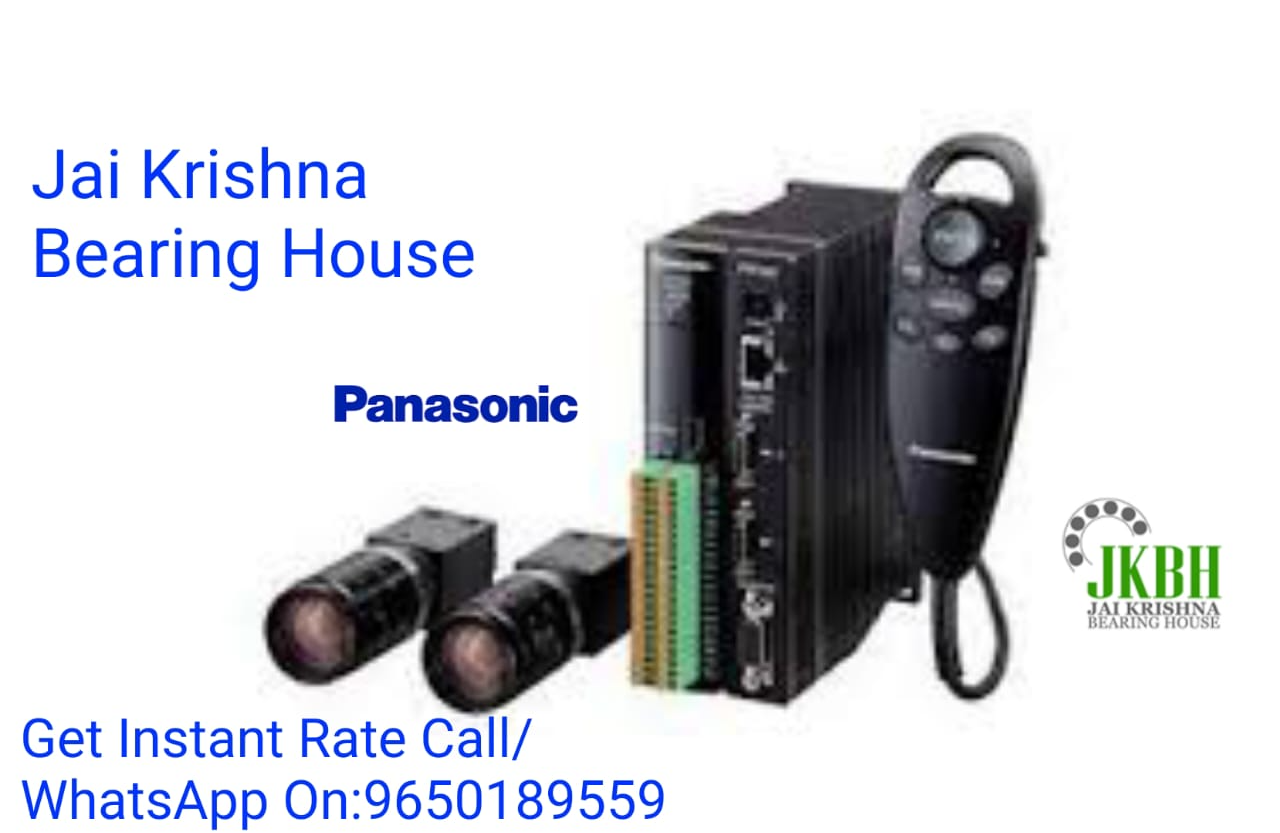

​Panasonic offers a range of machine vision systems designed to enhance automation processes through precise image processing and analysis. These systems are utilized across various industries for tasks such as alignment, optical character recognition (OCR), and code reading.​ Electronic Components Key Panasonic Vision Systems​ PV260 Series ​ The PV260 series simplifies robot setup by integrating vision capabilities directly into robotic systems. It allows for the registration of multiple coordinates to convert camera positions to robot coordinates, facilitating seamless integration and operation. ​ Features: Coordinate Conversion: Register 3-4 coordinates for transforming camera positions to robot coordinates.​ Teaching Support: Provides tools for teaching and setting up vision parameters.​ Direct Communication: Enables direct communication between the vision system and robotic controllers.​ Automatic Tool Coordinate Conversion: Simplifies the conversion process for tool coordinates within robotic applications.​ PV240 Series ​ The PV240 series addresses alignment challenges by capturing alignment marks for automatic calibration of camera coordinates. It supports various views and offers flexible attachment options, making it suitable for diverse applications. ​ Features: Alignment Simulation: Replicates alignment operations on a PC for verification and troubleshooting.​ WIRED +3 tp.industry.panasonic.com +3 Ind Mall Automation +3 Calibration Verification: Visually confirms the accuracy of calibration processes.​ Sample Setting Data: Provides default settings that can be customized based on user requirements.​ tp.industry.panasonic.com Software Support: Includes PC setup software ('PVWIN240') for easy configuration and operation.​ tp.industry.panasonic.com PV230 Series ​ The PV230 series offers an all-in-one solution featuring image processing, OCR, and code reading functions. It supports a wide range of camera resolutions and is capable of reading up to 80 characters, making it versatile for various inspection tasks. ​ tp.industry.panasonic.com +1 Automation Controls Top - Panasonic +1 Features: Comprehensive Functionality: Combines image processing, OCR, and code reading in a single unit.​ tp.industry.panasonic.com High Compatibility: Supports cameras ranging from 0.3M to 4M pixels.​ Efficient Code Reading: Capable of reading up to 80 characters with reliable verification results.​ User-Friendly Interface: Designed for ease of use, facilitating quick setup and operation.​ PV200 Series ​ The PV200 series enables simultaneous capture of color and grayscale images for comprehensive inspections. Its '3+1' Quad processor allows ultra-high-speed parallel processing, significantly reducing inspection times. ​ Automation Controls Top - Panasonic +1 tp.industry.panasonic.com +1 Features: Dual-Image Capture: Simultaneously captures color and grayscale images for thorough inspections.​ tp.industry.panasonic.com High-Speed Processing: Utilizes a quad processor for rapid image analysis, minimizing inspection durations.​ Flexible Integration: Easily integrates into existing production lines and systems.​ Product Discontinuation Notice​ Automation Controls Top - Panasonic +1 tp.industry.panasonic.com +1 Please be aware that the following Panasonic vision system products have been discontinued:​ MICRO-IMAGECHECKER Series: Models A110(V1), A210(V1), A210/A110 MultiChecker V2 Series, A220, and A230 OCR Type.​ Automation Controls Top - Panasonic +1 Automation Controls Top - Panasonic +1 2D Code Reading Sensor: Models PD50, PD60, and PD65.​ Electronic Components +2 Automation Controls Top - Panasonic +2 Automation Controls Top - Panasonic +2 LightPix Series: Models AE10 and AE20.​ Automation Controls Top - Panasonic +1 Automation Controls Top - Panasonic +1 For the latest information on available models and support, please refer to Panasonic's official communications. ​ Applications​ Automation Controls Top - Panasonic +6 Electronic Components +6 security.in.panasonic.com +6 Panasonic's vision systems are employed in various sectors, including:​ Automotive Manufacturing: Ensuring precision in assembly and quality control.​ Electronics Production: Verifying component placement and soldering quality.​ Packaging Industry: Reading barcodes and verifying package integrity.​ Pharmaceutical Sector: Conducting OCR for labeling and ensuring compliance.​
