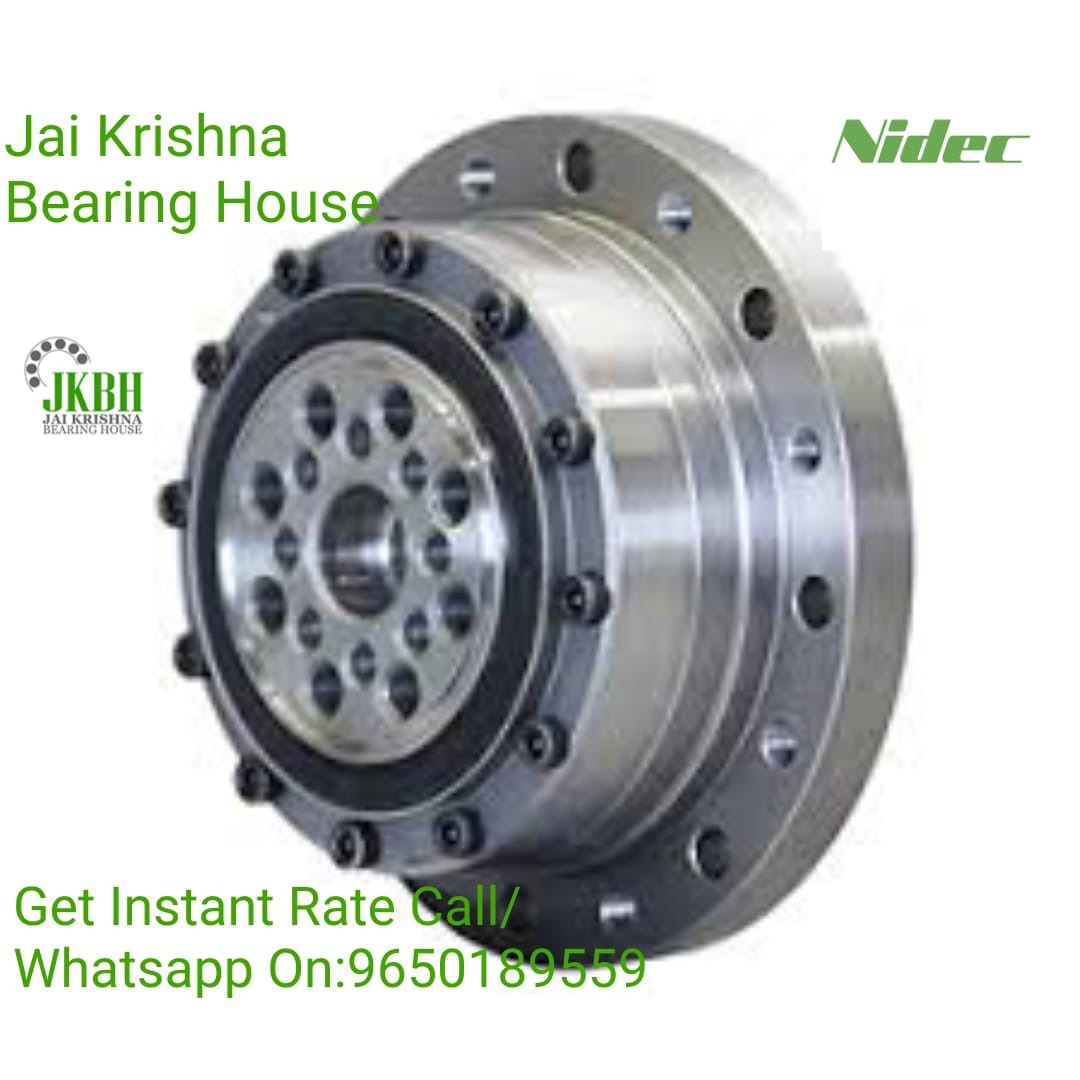

Nidec Gearbox (Nidec-Shimpo Gear Reducers)
Advanced Power Transmission Solutions by Jai Krishna Bearing House
In modern industrial automation and precision engineering, efficient power transmission plays a critical role in ensuring productivity, accuracy, and reliability. Nidec gearboxes, also known as Nidec-Shimpo gear reducers, are globally recognized for their high precision, durability, and superior torque transmission capabilities.
Jai Krishna Bearing House, an authorized dealer of Nidec gearboxes, provides a complete range of gearbox solutions backed by strong technical expertise, ensuring optimal performance for industrial and automation applications.
Introduction to Nidec Gearbox Technology
Nidec is a global leader in motion control and drive technologies, offering high-performance gear reducers designed for servo systems, robotics, CNC machines, and industrial automation.
Nidec gearboxes utilize multiple advanced gear technologies such as:
Planetary gear systems
Cycloidal drive systems
Worm gear mechanisms
Harmonic (strain wave) reducers
Traction drive technology
These technologies allow Nidec gearboxes to deliver high efficiency, compact design, low backlash, and high torque density, making them suitable for demanding industrial environments.
Working Principle of Nidec Gearbox
A gearbox is a mechanical device used to:
Reduce motor speed
Increase output torque
Control motion and positioning
Basic Operation:
The input shaft receives high-speed rotation from the motor
Internal gears reduce speed through gear ratios
The output shaft delivers higher torque at reduced speed
Advanced gear designs like planetary and cycloidal systems ensure smooth, efficient, and precise power transmission.
Types of Nidec Gearboxes
1. Planetary Gearbox
Planetary gearboxes are widely used in automation systems due to their compact size and high efficiency.
Technical Features:
Low backlash (as low as 3 arc-min)
High efficiency up to 95–97%
High torque density
Quiet operation with helical gears
High torsional rigidity
Planetary gearboxes use a central sun gear, multiple planet gears, and a ring gear to distribute load evenly, ensuring high performance.
Applications:
CNC machines
Robotics
Packaging machines
Servo motor systems
Nidec planetary gearboxes are known for compact design, high efficiency, and high overload capacity, making them suitable for dynamic applications.
2. Cycloidal Gearbox
Cycloidal reducers are designed for heavy-duty and shock-load applications.
Technical Advantages:
Shock load capacity up to 500% of rated torque
High reduction ratios in compact size
Minimal wear due to rolling contact
Long service life
Backlash less than 6 arc-min
Working Principle:
An eccentric shaft drives a cycloidal disc, which rotates against fixed pins, producing high torque with minimal friction.
Applications:
Heavy automation systems
Robotics
Material handling
Industrial machinery
Cycloidal gearboxes use compression forces instead of shear forces, reducing wear and increasing durability.
3. Worm Gearbox
Worm gear reducers are used where high reduction ratios and smooth motion are required.
Key Features:
High torque capacity
Self-locking capability
Quiet operation
Compact design
Nidec worm gearboxes use globoidal worm design, ensuring high rigidity and positioning accuracy.
Applications:
Lifting systems
Conveyors
Positioning equipment
4. Harmonic (Flexwave) Gearbox
Harmonic gearboxes are designed for ultra-precision applications.
Features:
Zero backlash
High positional accuracy
Lightweight and compact
Excellent repeatability
Applications:
Robotics
Semiconductor equipment
Medical devices
5. Traction Drive Gearbox
Traction drive is an advanced Nidec technology that replaces gear contact with friction-based transmission.
Advantages:
Near-zero backlash
Extremely smooth rotation
High-speed capability (>6000 RPM)
Low noise and vibration
6. Right-Angle Gearbox
Designed for space-saving installations, right-angle gearboxes allow 90-degree power transmission.
Features:
Compact mounting
High torque output
Flexible installation
Technical Specifications of Nidec Gearboxes
Below are typical technical parameters:
Torque Range
Up to 500 Nm and above (depending on model)
High overload capacity
Gear Ratios
Single stage: 3:1 to 60:1
Multi-stage: up to 1000:1
Backlash
Standard: 3–10 arc-min
High precision: near zero
Efficiency
Planetary: up to 97%
Cycloidal: very high efficiency
Worm: moderate efficiency
Speed Range
Input speed: up to 6000 RPM or higher
Mounting Types
Inline (coaxial)
Right-angle
Hollow shaft
Flange mounting
Key Features of Nidec Gearboxes
1. High Precision Engineering
Nidec gearboxes are designed for accurate motion control, essential for robotics and CNC machines.
2. Low Backlash
Ensures:
Precise positioning
Smooth operation
Reduced vibration
3. High Torque Density
Delivers maximum torque in a compact size, improving machine performance.
4. Compact and Lightweight Design
Ideal for space
