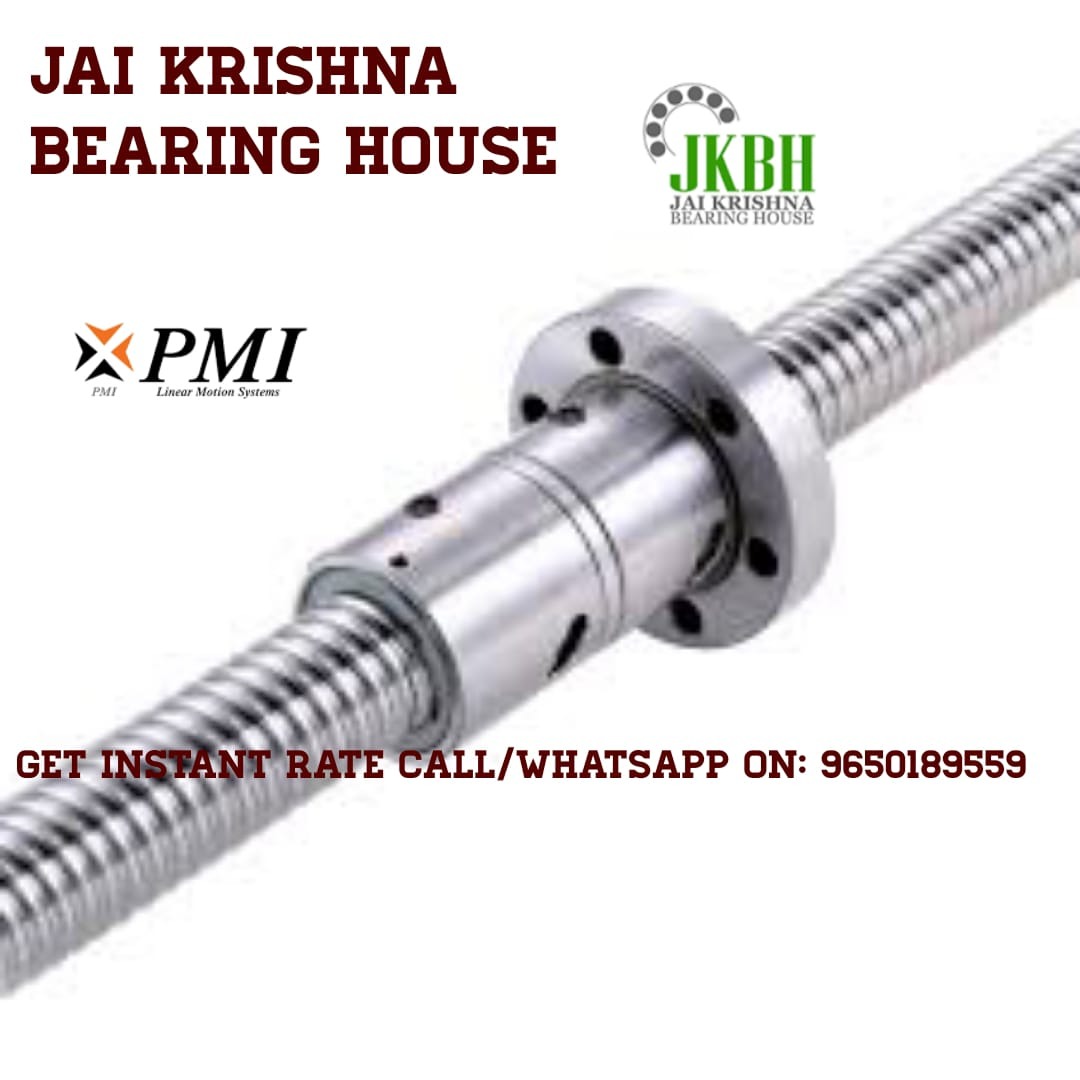

PMI Shaft and Nut (Ball Screw System)
High Precision Linear Motion Solutions by Jai Krishna Bearing House
In today’s advanced manufacturing and automation industries, precision linear motion is essential for achieving high accuracy, efficiency, and repeatability. One of the most critical components enabling this precision is the ball screw system, commonly referred to as the shaft and nut assembly.
PMI shaft and nut systems, manufactured by PMI Group, are globally recognized for their high precision, durability, and superior performance in industrial applications.
Jai Krishna Bearing House, a trusted dealer of PMI products, offers a complete range of PMI ball screws (shaft and nut assemblies) designed to meet the demanding requirements of CNC machinery, automation systems, and precision engineering industries.
What is a PMI Shaft and Nut (Ball Screw)?
A PMI shaft and nut assembly is a mechanical device used to convert rotary motion into linear motion with high efficiency and minimal friction.
Basic Components:
Ball Screw Shaft – A threaded shaft with precision-ground helical grooves
Ball Nut – Contains recirculating ball bearings
Steel Balls – Enable rolling motion instead of sliding friction
Return Mechanism – Circulates balls continuously
Working Principle:
When the shaft rotates:
Balls roll between the nut and shaft
Friction is minimized due to rolling contact
The nut moves linearly along the shaft
This results in high efficiency (up to 90–98%), smooth motion, and precise positioning.
Types of PMI Ball Screw Systems
PMI offers a wide range of shaft and nut configurations for different industrial applications.
1. Ground Ball Screws
These are high-precision ball screws manufactured through grinding processes.
Features:
Extremely high accuracy (up to C3 grade)
Low backlash
Smooth surface finish
High repeatability
Applications:
CNC machines
Precision machining centers
Aerospace equipment
2. Rolled Ball Screws
Rolled ball screws are cost-effective solutions for general industrial use.
Features:
Good accuracy (C7, C10 grades)
Economical pricing
Suitable for moderate precision applications
Applications:
Automation systems
Packaging machines
Material handling equipment
3. Flanged Nut Ball Screws
These systems include a flange for easy mounting.
Advantages:
Easy installation
High rigidity
Better load distribution
4. Cylindrical Nut Ball Screws
Designed for compact installations.
Features:
Space-saving design
Flexible mounting options
Lightweight structure
5. Preloaded Ball Screws
Preloaded systems eliminate backlash and improve rigidity.
Benefits:
Zero or near-zero backlash
High positioning accuracy
Improved stiffness
Technical Specifications of PMI Shaft and Nut
Below are general technical parameters (vary depending on model):
Accuracy Grades
C0, C1, C3 – Ultra precision
C5 – High precision
C7, C10 – Standard industrial
Lead Accuracy
±0.003 mm to ±0.05 mm per 300 mm
Diameter Range
Typically from 6 mm to 100 mm
Lead (Pitch)
From 1 mm to 50 mm
Load Capacity
Dynamic load capacity: High depending on size
Static load capacity: Designed for heavy loads
Efficiency
Up to 98% due to rolling friction
Backlash
Standard: small backlash
Preloaded: near zero backlash
Key Features of PMI Shaft and Nut Systems
1. High Precision and Accuracy
PMI ball screws ensure micron-level positioning accuracy, making them ideal for high-end applications.
2. High Efficiency
Rolling contact reduces friction significantly compared to conventional lead screws.
3. Low Backlash
Ensures:
Precise motion control
Smooth operation
Better repeatability
4. High Load Carrying Capacity
Designed to handle both:
Axial loads
Dynamic loads
5. Long Service Life
Advanced materials and heat treatment ensure durability.
6. Smooth and Quiet Operation
Ball recirculation system reduces vibration and noise.
Industrial Applications of PMI Shaft and Nut
PMI ball screw systems are widely used in:
1. CNC Machines
Milling machines
Lathe machines
Grinding machines
2. Automation Systems
Pick-and-place systems
Assembly lines
Robotics
3. Semiconductor Industry
Precision positioning systems
Wafer handling
4. Packaging Industry
Filling machines
Labeling machines
5. Medical Equipment
Imaging systems
Surgical devices
6. Aerospace Industry
High precision motion systems
Advantages of PMI Ball Screws Over Conventional Systems
Feature Ball Screw Lead Screw
Efficiency 90–98% 20–40%
Friction Low High
Accuracy Very high Moderate
Backlash Low/Zero High
Life Long Short
Why Choose PMI Shaft and Nut?
PMI is a globally trusted brand known for:
Advanced manufacturing technology
High precision standards
Reliable performance
Wide product range
Competitive pricing
PMI ball screws are widely used in automation and CNC industries due to their consistent performance and durability.
Why Choose Jai Krishna Bearing House?
Jai Krishna Bearing House is a trusted dealer of PMI products, providing complete solutions for industrial applications.
Our Strengths:
✔
