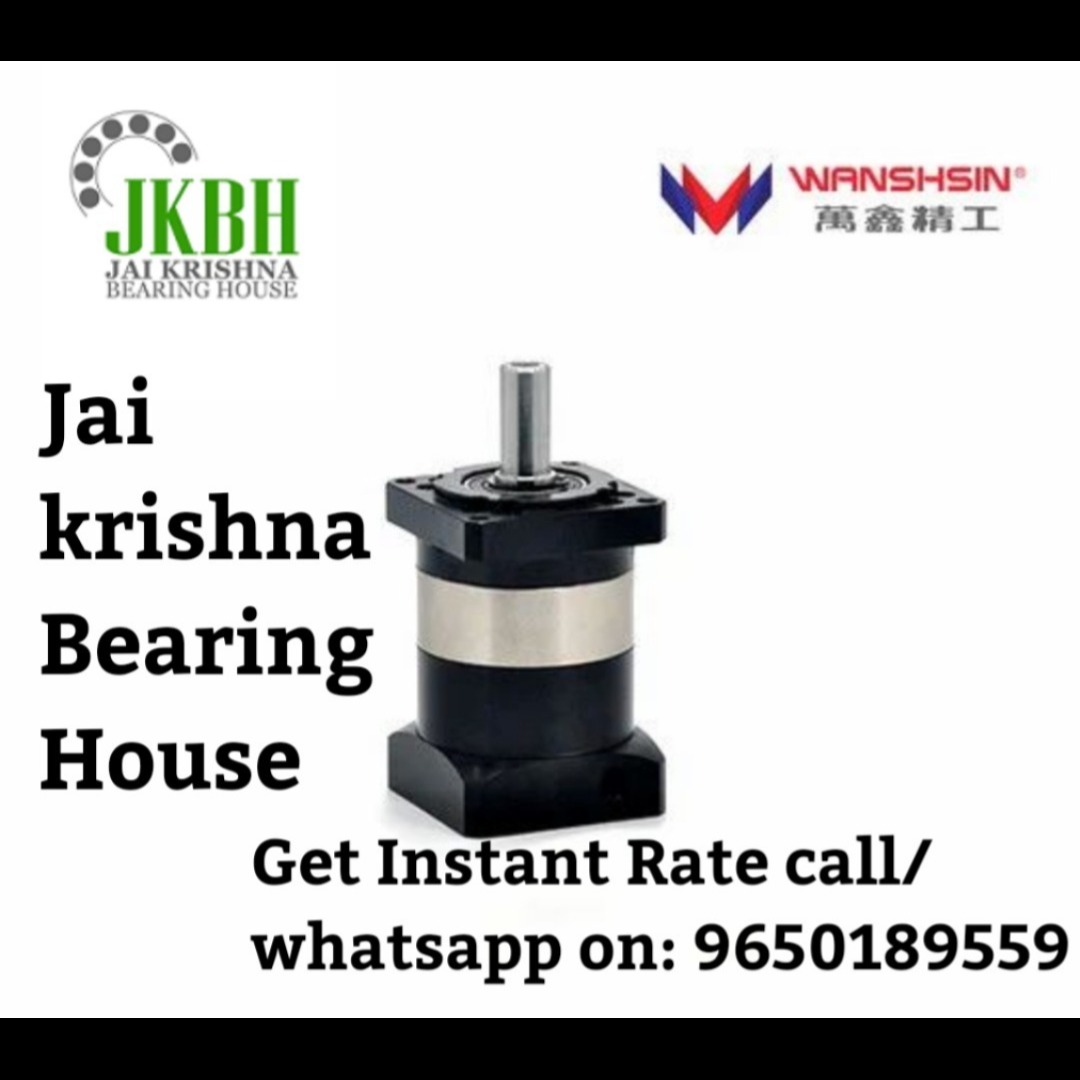

WANSHSIN HP Planetary Reduction Gearbox is a high-performance precision gearbox designed for servo motor and motion control applications requiring high torque, high accuracy, and reliable power transmission. The HP series utilizes an advanced planetary gear mechanism consisting of a central sun gear, multiple planet gears, a ring gear, and a planet carrier. This design enables the gearbox to distribute loads evenly across multiple gears, resulting in higher torque capacity, greater efficiency, and smoother operation compared to conventional gear reducers. WANSHSIN planetary gearboxes are widely used in CNC machines, industrial robots, packaging equipment, printing machinery, semiconductor manufacturing systems, automated assembly lines, material handling equipment, and other high-precision automation applications.
The HP series is manufactured using high-grade alloy steel gears that undergo carburizing, hardening, and precision grinding processes to achieve superior wear resistance and long service life. The gears are designed with optimized tooth profiles that reduce vibration and operating noise while improving transmission efficiency. The planetary carrier and output shaft are integrated into a rigid structure that enhances torsional stiffness and minimizes deformation under heavy loads. This construction allows the gearbox to maintain excellent positioning accuracy and repeatability, making it suitable for demanding servo-driven applications.
One of the major advantages of the WANSHSIN HP planetary gearbox is its low backlash performance, which ensures accurate motion control and precise positioning. Depending on the model and precision grade, the gearbox is available in multiple backlash classes for applications ranging from general automation to high-precision robotics. The gearbox also features high-quality bearings that support large radial and axial loads, enabling stable operation even in continuous-duty industrial environments. Transmission efficiency can exceed 96% in single-stage designs and remains highly efficient in multi-stage configurations.
WANSHSIN HP planetary reducers are available in various frame sizes and reduction ratios, typically ranging from 3:1 to 200:1, allowing users to select the ideal combination of output speed and torque for their application. The gearboxes can handle high motor input speeds, often up to 10, 000 RPM depending on the model, while delivering output torque capacities ranging from small automation systems to heavy-duty industrial machinery. Multiple mounting configurations and motor adapter options make integration with servo motors from different manufacturers simple and efficient.
The compact design of the HP series helps save installation space while delivering exceptional power density. Its robust housing construction, precision-machined components, and sealed lubrication system provide reliable operation with minimal maintenance requirements. Due to their combination of high rigidity, low backlash, high efficiency, and long operating life, WANSHSIN HP Planetary Reduction Gearboxes are considered an ideal solution for modern industrial automation systems that require precise speed reduction and torque multiplication.
