WANSHSIN Planetary Gearbox is a high-precision power transmission device designed to reduce motor speed while increasing output torque with exceptional accuracy and efficiency. It utilizes an advanced planetary gear mechanism consisting of a central sun gear, multiple planet gears, a surrounding ring gear, and a planet carrier. This unique arrangement allows the load to be distributed evenly among several gears, resulting in higher torque capacity, smoother operation, and greater durability compared to conventional gearbox designs. WANSHSIN planetary gearboxes are widely used in industrial automation, CNC machinery, robotics, packaging equipment, material handling systems, printing machines, semiconductor equipment, and servo motor-driven applications.
The gearbox is manufactured using high-strength alloy steel gears that undergo precision grinding, carburizing, and heat-treatment processes to achieve superior hardness, wear resistance, and long service life. WANSHSIN incorporates advanced gear tooth profile technology to minimize vibration and operating noise while maintaining excellent transmission efficiency. The integrated output shaft and planetary carrier design provide high torsional rigidity and rotational accuracy, making the gearbox suitable for applications requiring precise positioning and repeatability. Many WANSHSIN series feature low-backlash construction, ensuring smooth motion control and accurate servo system performance.

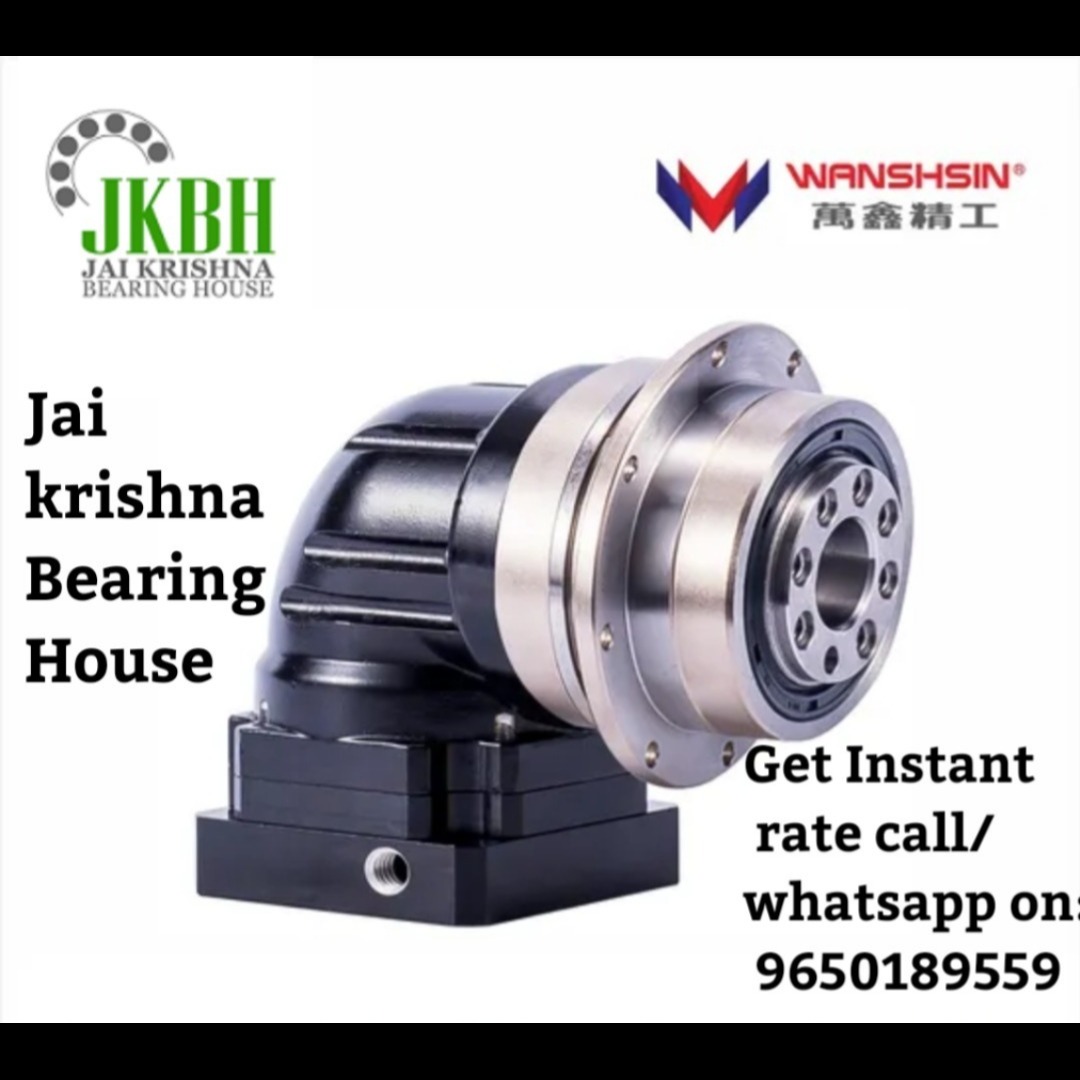

WANSHSIN offers several planetary gearbox series, including WAE, WAD, WSH, WTH, WVRB, and WVRBR, available in both inline and right-angle configurations. These gearboxes are offered in single-stage and multi-stage versions with reduction ratios typically ranging from 3:1 to 200:1, allowing engineers to select the ideal speed reduction and torque multiplication for their application. The gearboxes are designed to support high input speeds, deliver high output torque, and maintain transmission efficiencies often exceeding 95% in single-stage configurations.
A major advantage of WANSHSIN planetary gearboxes is their compact size and high power density. Despite their small footprint, they can transmit substantial torque loads while maintaining excellent rigidity and stability. The use of premium bearings and precision machining enables the gearbox to handle high radial and axial loads, making it ideal for continuous industrial operation. The sealed lubrication system reduces maintenance requirements and ensures reliable long-term performance even in demanding environments.
WANSHSIN planetary gearboxes are commonly integrated with servo motors from leading manufacturers and are extensively used in robotic arms, CNC machining centers, automated production lines, pick-and-place machines, conveyor systems, packaging machinery, warehouse automation systems, and precision motion control equipment. Their combination of high torque capacity, low backlash, high efficiency, compact design, and long service life makes them one of the preferred gearbox solutions for modern industrial automation applications.
