WANSHSIN Transmotion Servo System is a high-performance motion control solution designed for industrial automation, CNC machinery, robotics, packaging equipment, printing machines, semiconductor equipment, and material handling systems. The system consists of a servo motor, servo drive/controller, and feedback encoder that work together to provide precise position, speed, and torque control.
Key Components
1. Servo Motor
Permanent Magnet Synchronous Motor (PMSM)
High efficiency and fast dynamic response
Compact design with high torque output
Available in multiple power ratings and frame sizes
Suitable for continuous industrial operation under demanding conditions
2. Servo Drive (Controller)
Controls motor speed, position, and torque
Supports precise motion profiles
Fast response and stable operation
AC 220V servo drive options available
Designed for industrial automation applications
3. Encoder Feedback System
High-resolution encoder feedback
17-bit and 23-bit encoder options
Ensures accurate positioning and repeatability
Real-time monitoring of motor movement for closed-loop control
Main Features
High precision positioning
Low vibration and smooth operation
High torque at low speeds
Fast acceleration and deceleration
Excellent speed stability
Energy-efficient operation
Compact and robust construction
Long service life with minimal maintenance
Technical Highlights
Voltage options: 220V and 380V
Speed options: 1000 RPM, 1500 RPM, 2000 RPM, and 3000 RPM
Multiple motor inertia selections (S, M, H, E)
Encoder options include 17-bit and 23-bit feedback systems
Compatible with planetary gearboxes and automation systems
Industrial Applications
WANSHSIN Transmotion Servo Systems are widely used in:
CNC Machines
Robotics & Pick-and-Place Systems
Packaging Machinery
Printing Machines
Textile Machinery
Semiconductor Equipment
Conveyor Systems
Warehouse Automation
Material Handling Equipment
Automatic Production Lines
Advantages Over Conventional Motors
Higher positioning accuracy
Better speed control
Faster response time
Higher efficiency
Lower power consumption
Improved machine productivity
Reduced maintenance costs
Better synchronization in multi-axis systems
WANSHSIN Product Range
WANSHSIN is a global manufacturer of intelligent transmission and motion control products, offering:
Servo Motors
Servo Drives

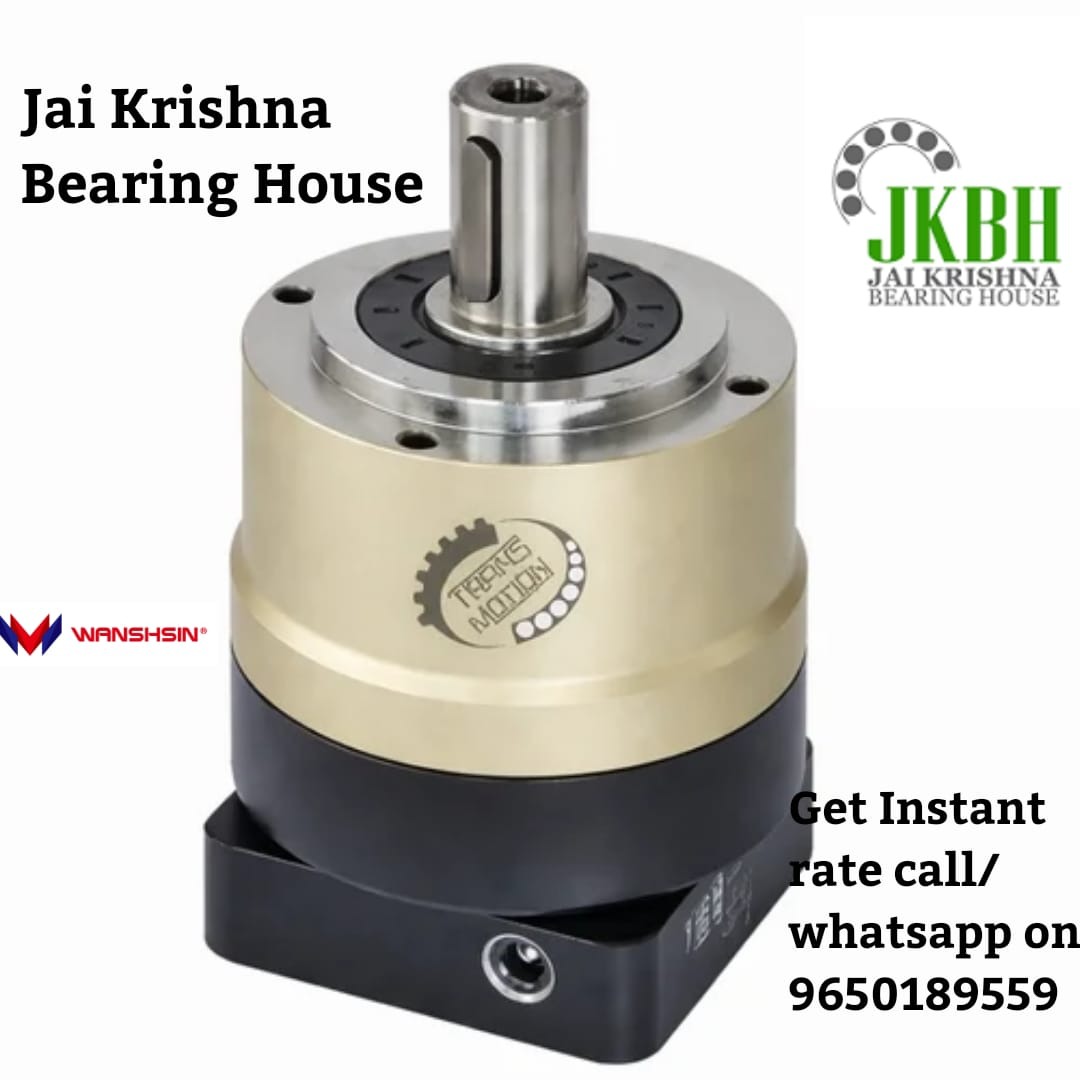

Planetary Gearboxes
RV Reducers
Strain Wave Gearboxes
Gear Motors
Variable Frequency Drives (VFDs)
Industrial Automation Solutions
