The Super T series circulation path has the elements leaving the ball track tangential to the PCD and coordinating with the lead angle of the ballscrew shafting.
This optimal design not only reduces the noise level but also vibrations leading to smoother rotation.
Ballscrews, also called a ball bearing screws, recirculating ballscrews, etc.,
consist of a screw spindle and a nut integrated with balls and the balls’ return mechanism, return tubes or return caps.
Ballscrews are the most common type of screws used in industrial machinery and precision machines.
The primary function of a ballscrew is to convert rotary motion to linear motion or torque to thrust, and vice versa, with the features of high accuracy, reversibility and efficiency.
Bearing supports are composed of main body, bearings, cover plate, spacers, oil seals, lock nut, and set screws.
Matched with the customer´s axial loading requirement, the bearing support has three configuration types: DF, DFD and DFF.

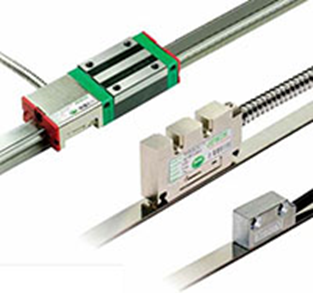

HIWIN Corporation's single axis stages utilize a combination of a motor driven ballscrew or belt and linear guideway system.
These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications.
Depending on the application needs, Hiwin offers a single axis stage that will increase a systems productivity and efficiency.
HIWIN Corporation offers AC servo motors and stepper motors, which when combined with Hiwin's product line are great solutions for converting rotary motion into linear motion.
Our motors complement our product offerings and can be a complete linear motion solution when our servo drive is incorporated.
Our servo drive solution is compatible with: high performance drives for linear motors, shaft motors, torque motors, and AC servo motors.
