HG/CG series - Grinding, milling, and drilling machine, lathe, machine center
EG series - Automatic equipment, high speed transfer device, semiconductor equipment, wood cutting machine, precision measure equipment QE/QH series - precision measure equipment, semiconductor equipment, Automatic equipment, laser marking machine, can be widely applied in high-tech industry required high speed, low noise, low dust generation.
WE/QW series - Automatic device, transportation device, precision measure equipment, semiconductor equipment, blow moulding machine, single axis robotrobotics. MG series - Miniature device, semiconductor equipment, medical equipment
RG/QR/CRG series - CNC machining centers, heavy duty cutting machines, CNC grinding machines, injection molding machines, electric discharge machines, wire cutting machines, plano mille.
AG Series : Sliding Head Lathe (Swiss lathe), Vibration Test Machine, Automated Robot Dispenser, XY moving platform, Measuring instrument, Vertical Lathe, Slant Bed Lathes Selection of accura.
Classes : C, H, P, SP, UP depends on the accuracy of equipment Determines the size & the number of blocks

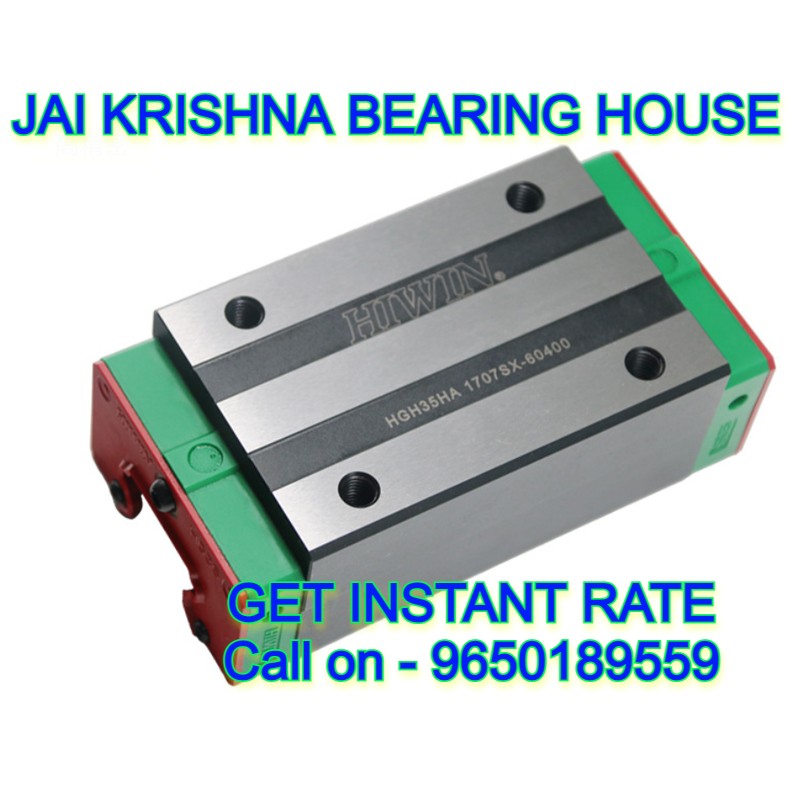

Dynamic load condition If accompanied with a ballscrew, the size should be similar to the diameter of ballscrew. For example, if the diameter of the ballscrew is 35mm, then the model size of linear guideway should be HG35 Calculate the max. load of block Make reference to load calculation examples, and calculate the max load.
Be sure that the static safety factor of selected guideway is larger than the rated static safety factor Choosing preload
Depends on the stiffness requirement and accuracy of mounting surface Identify stiffness
Calculate the deformation (δ) by using the table of stiffness values, choosing heavier preload and larger size linear guideways to enhance the stiffness Calculating service life Calculate the life time requirement by using the moving speed and frequency.
