Stockists of THK Ball Type Linear Guide Blocks
We are proud to be stockists of THK Ball Type Linear Guide Blocks, supplying genuine THK products to industries across Delhi NCR and surrounding regions. With ready inventory, technical expertise, and customer-focused service, we serve OEMs, machine builders, automation companies, and maintenance teams with dependable linear motion solutions.
2. About THK – Global Leader in Linear Motion Technology
THK Co., Ltd., Japan, is the pioneer of Linear Motion (LM) Guide technology. Since its inception, THK has revolutionized machine design by replacing traditional sliding mechanisms with rolling motion systems. Today, THK products are used worldwide in industries that demand the highest levels of accuracy and durability.
The THK Ball Type Linear Guide Block is one of the most widely used products in the THK portfolio. Known for its smooth operation, low friction, and long service life, it has become an industry standard in precision machinery.
3. What is a THK Ball Type Linear Guide Block?

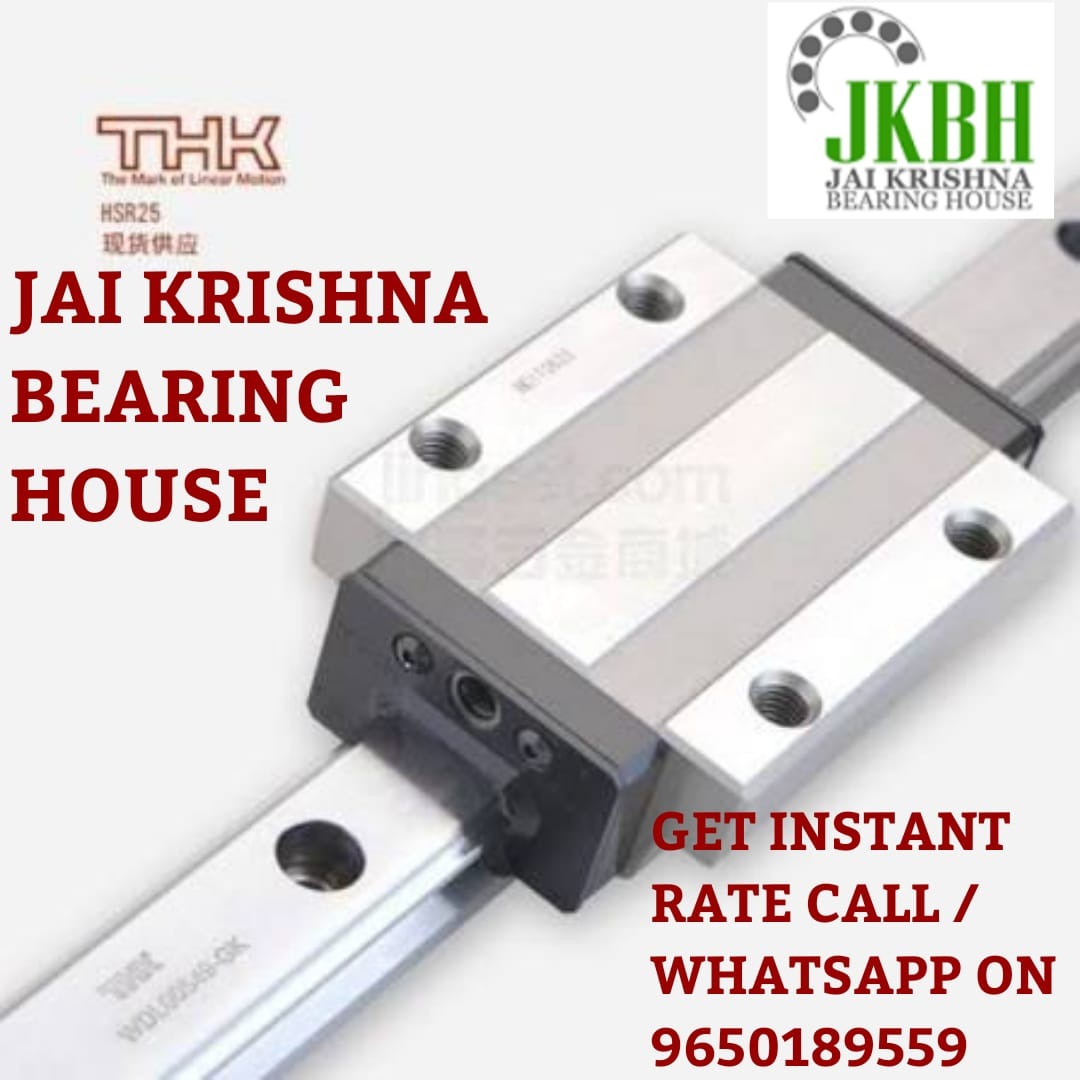

A THK Ball Type Linear Guide Block is a precision mechanical component designed to move smoothly along a linear guide rail using recirculating steel balls. The rolling motion significantly reduces friction compared to sliding guides, resulting in higher efficiency, accuracy, and lifespan.
Key Characteristics:
Uses hardened steel balls as rolling elements
Enables smooth and continuous linear motion
Supports loads in multiple directions
Offers high positional accuracy and repeatability
The block works in combination with a THK linear guide rail, forming a complete linear motion guide system.
4. Construction of THK Ball Type Linear Guide Block
The superior performance of THK ball type blocks comes from their precision engineering and robust construction.
4.1 Block Body
Manufactured from high-grade alloy steel, the block body provides structural strength and rigidity. It is precision-machined to ensure perfect alignment with the rail.
4.2 Rolling Elements (Steel Balls)
Hardened and polished steel balls circulate inside the block. These balls carry the load and enable rolling motion, drastically reducing friction and wear.
4.3 Raceway Grooves
Raceways are hardened and ground grooves on both the block and the rail. The balls roll along these raceways, ensuring smooth and accurate movement.
4.4 End Caps
End caps guide the balls from one raceway to another, allowing continuous circulation and unlimited stroke length.
4.5 Ball Retainer (Cage)
The retainer maintains equal spacing between balls, reducing noise and preventing ball collision.
4.6 Sealing System
Seals prevent dust, debris, and contaminants from entering the block, ensuring reliable operation even in industrial environments.
5. Working Principle of THK Ball Type Linear Guide Block
The working principle is based on rolling friction rather than sliding friction.
The block is mounted on the linear rail.
When motion is applied, the block moves along the rail.
Steel balls roll between the block and rail raceways.
Balls recirculate through internal paths inside the block.
Continuous rolling allows smooth, precise, and low-resistance motion.
This principle ensures high speed, low energy loss, and long service life.
6. Types of THK Ball Type Linear Guide Blocks We Stock
As stockists, we maintain a wide range of THK ball type blocks to meet diverse industrial needs.
6.1 Standard Ball Type Linear Guide Blocks
General-purpose applications
Balanced load capacity and speed
Widely used in CNC machines and automation
6.2 Flanged Ball Type Blocks
Equipped with mounting flanges
Easy installation
Enhanced rigidity
6.3 Compact and Miniature Ball Type Blocks
Small size and lightweight
Ideal for electronics, medical, and optical equipment
6.4 Sealed Ball Type Linear Guide Blocks
Designed for dusty or contaminated environments
Longer maintenance intervals
7. Load Capacity and Performance Characteristics
THK ball type linear guide blocks are engineered to handle complex load conditions.
7.1 Load Ratings
Static Load Rating: Maximum load without permanent deformation
Dynamic Load Rating: Load under which the block achieves its rated service life
7.2 Multi-Direction Load Capability
THK ball type blocks can withstand:
Vertical loads
Horizontal loads
Moment and tilting loads
7.3 High Precision
Micron-level accuracy
Excellent repeatability
Smooth motion even at high speeds
8. Advantages of THK Ball Type Linear Guide Blocks
Choosing THK ball type bloc
